Chalcoat Estate, London – High-Rise Façade Engineering & Wind Load Analysis

📍 Location: Chalcoat Estate, London, UK

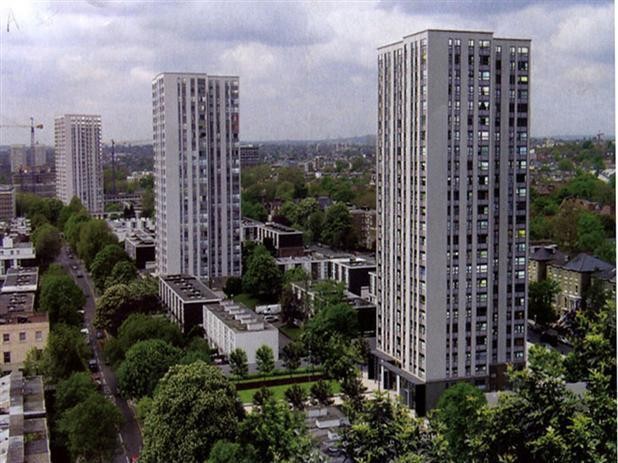

🏢 Building Type: High-Rise Residential Towers (20-23 Stories)

NFE Structural was engaged in the Chalcoat Estate redevelopment to provide façade engineering and structural analysis for high-rise residential towers ranging between 20 and 23 stories. Given the urban high-rise environment and exposure to significant wind loads, our team conducted a detailed wind load analysis, cladding system assessment, and structural framing optimization using top hat sections.

The project focused on fire safety, wind resistance, and structural durability to ensure the long-term performance and compliance of the building envelope.

🎯 Project Key Focus Areas

✅ Wind Load Impact on High-Rise Structure – Assessing dynamic wind effects and structural responses to London’s Wind Zone 3 conditions.

✅ Cladding System Performance – Ensuring fire-resistant, durable, and weatherproof façade materials and installation methods.

✅ Structural Framing & Top Hat Sections – Optimizing load distribution and stability to maintain façade integrity under wind forces.

🛠 Scope of Work & Engineering Approach

1️⃣ Cladding System & Material Selection

• Recommended non-combustible cladding materials, such as:
  ✅ Mineral-core aluminum composite panels
  ✅ Fiber cement panels
• Designed a rainscreen cladding system with ventilation gaps to:
  ✅ Prevent moisture buildup
  ✅ Accommodate thermal expansion
  ✅ Enhance weather resistance
• Secured the cladding system with high-strength mechanical anchors to ensure long-term durability.

2️⃣ Wind Load Analysis & Structural Impact

• Conducted wind pressure analysis based on London’s Wind Zone 3 exposure, factoring in high-rise wind dynamics.
• Applied dynamic gust effect calculations to ensure the cladding and structural support system could withstand wind pressures up to 3 kN/m².
• Used advanced Computational Fluid Dynamics (CFD) modeling to simulate real-world wind effects on the building façade.

3️⃣ Structural Framing – Top Hat Sections

• Designed galvanized steel top hat sections to provide a strong, corrosion-resistant framework for the façade.
• Key specifications:
  ✅ Minimum thickness: 1.5mm
  ✅ Spaced at 600mm intervals to optimize cladding support & wind resistance
• Ensured the top hat system provided adequate stiffness to prevent excessive deflection under wind loads.

🏗️ Key Challenges & Solutions

🌬️ High Wind Load Exposure

✅ Engineered a façade system to withstand high wind pressures up to 3 kN/m², ensuring structural safety.

🔥 Fire Safety & Compliance

✅ Utilized non-combustible façade materials to meet fire safety regulations and enhance durability.

🛠 Structural Deflection & Durability

✅ Optimized the top hat structural system to minimize deflections while ensuring efficient load distribution.

📈 Project Outcome

✔ Regulation-compliant, wind-resistant façade design improving safety & longevity.
✔ Optimized structural framing ensuring façade stability under high-rise wind conditions.
✔ Fire-safe, durable, and moisture-resistant cladding system, ensuring long-term performance.

By integrating engineered wind-resistant cladding, secure structural framing, and non-combustible materials, NFE Structural provided a highly resilient retrofit model suitable for high-rise buildings in urban environments.

‍
